45nm Low Noise Amplifier#
Overview#
Fully-integrated CMOS Low Noise Amplifier (LNA) for 5.25 GHz wireless applications using 45nm PDK models. The LNA meets stringent RF specifications including bandwidth of 200 MHz, gain >15 dB, noise figure <2.063 dB, input/output matching <-10 dB, and IIP3 > -7 dBm, while minimizing power consumption from a 1.0V supply.
Highlights#
- Analog Fundamentals, Analog Simulation (S-parameter Analysis, Noise Analysis, Linearity Analysis, AC/DC/Transient Analysis, Monte-Carlo, etc.)
- 45 nm GPDK Analog CMOS IC Design, EDA Tools (Cadence Virtuoso/Spectre/ADE Assembler, LTspice)
- Power Distribution, Layout and Physical Design Fundamentals

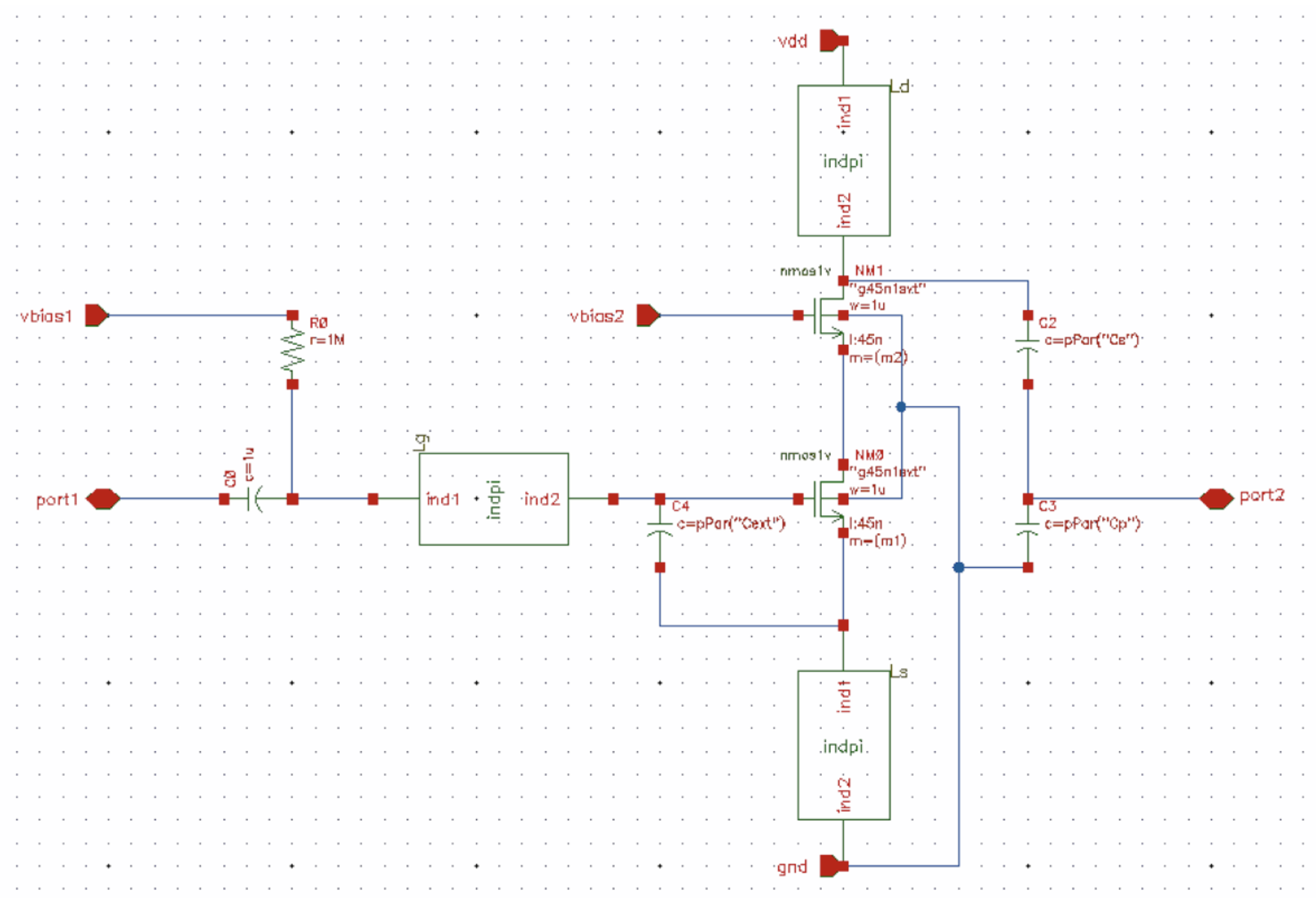

- Inductively-degenerated cascode topology with optimized 125μm/120μm transistor widths achieving 34.96 mS and 36.07 mS transconductance
- Precision output matching network designed using tapped capacitor method with Cp = 1.19 pF and Cs = 395 fF to interface with 50 fF load capacitance
- Simultaneous power and noise matching achieved through careful selection of Lg = 2.85 nH and Ls = 0.34 nH, resulting in NF of 2.003 dB at 5.25 GHz
- Superior reverse isolation of -41.52 dB from cascode configuration, well below the -30 dB requirement
- Optimized power consumption of only 2.862 mW, achieved through iterative transistor sizing and biasing optimization while maintaining all specifications
