45nm Voltage Controlled Oscillator#
Overview#
Fully-integrated CMOS Voltage Controlled Oscillator (VCO) operating at 5.25 GHz using 45 nm PDK models. The design achieves a tuning range >10%, VCO gain >900 MHz/V, and low phase noise (< -114.6 dBc/Hz @ 600 kHz, < -119.3 dBc/Hz @ 1 MHz), while maintaining low power consumption (15.3 mW) from a 1.2 V supply.
Highlights#
- RF Analog Fundamentals, Oscillator Theory (Phase Noise, Leeson’s Model, Negative Resistance, LC Tank Design)
- Advanced RF Simulation (PSS, Pnoise, Transient, Parametric Sweeps, Noise Contribution Analysis)
- 45 nm GPDK Analog CMOS IC Design, EDA Tools (Cadence Virtuoso/Spectre/ADE Assembler, LTspice)
- Power Optimization Techniques (gm/Id design, bias scaling, startup margin tuning)

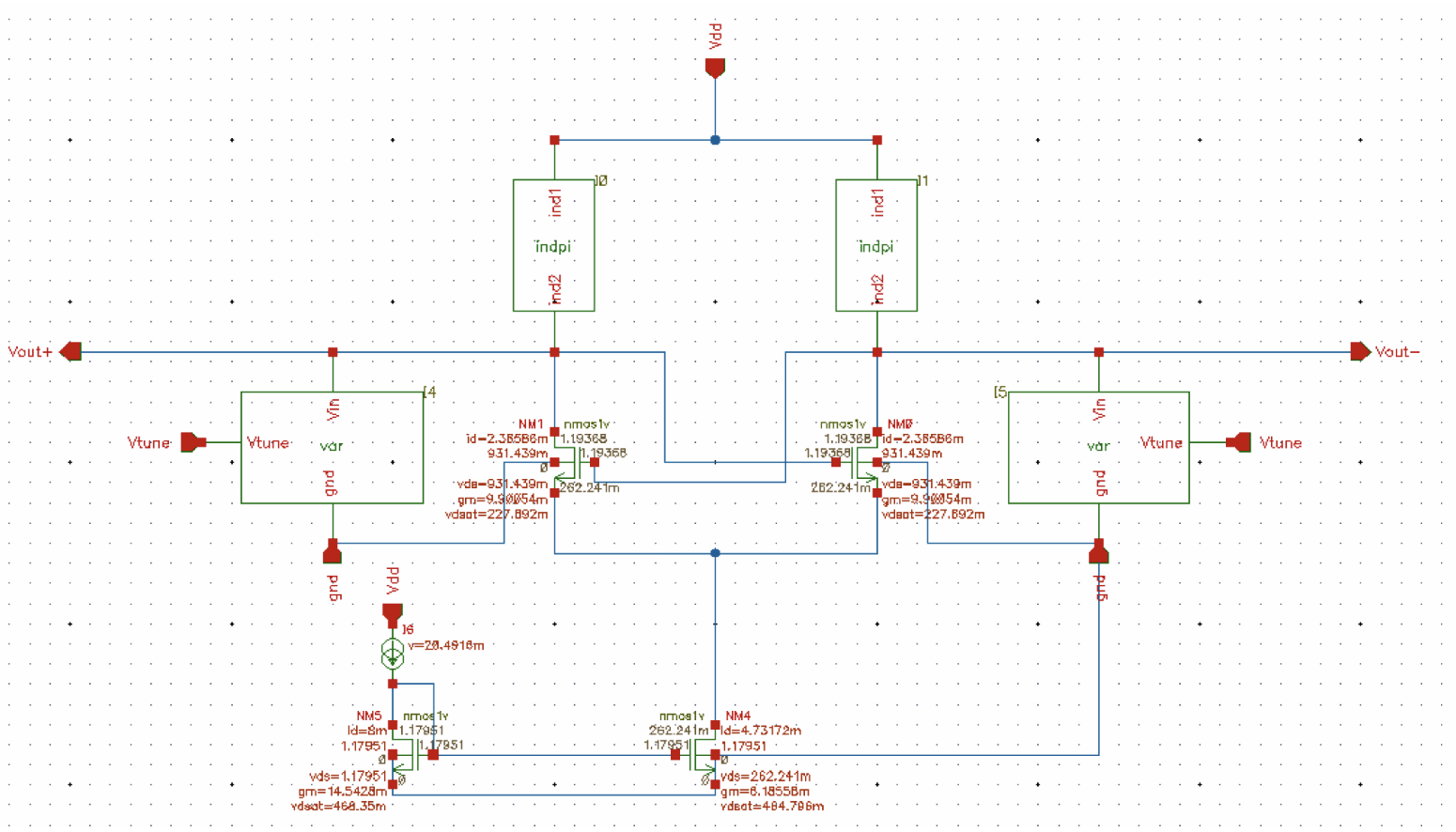

- Cross-coupled LC VCO topology with MOS varactor-based tuning network enabling wideband frequency control from 4.65 GHz to 5.79 GHz (>10% tuning range)
- High VCO gain (K_VCO ≈ 948 MHz/V) with localized linear region exceeding 1.24 GHz/V through optimized varactor sizing and capacitance allocation
- Low phase noise performance achieving -114.6 dBc/Hz @ 600 kHz and -119.3 dBc/Hz @ 1 MHz via high-Q LC tank design and noise-aware biasing
- Fast startup time (< 2 ns) validated via transient simulation with stable differential output swing
- Power-efficient design (15.3 mW) achieved through iterative transistor sizing, tail current optimization, and minimizing unnecessary negative resistance margin
