Autonomous Search and Rescue Robot#

Overview#

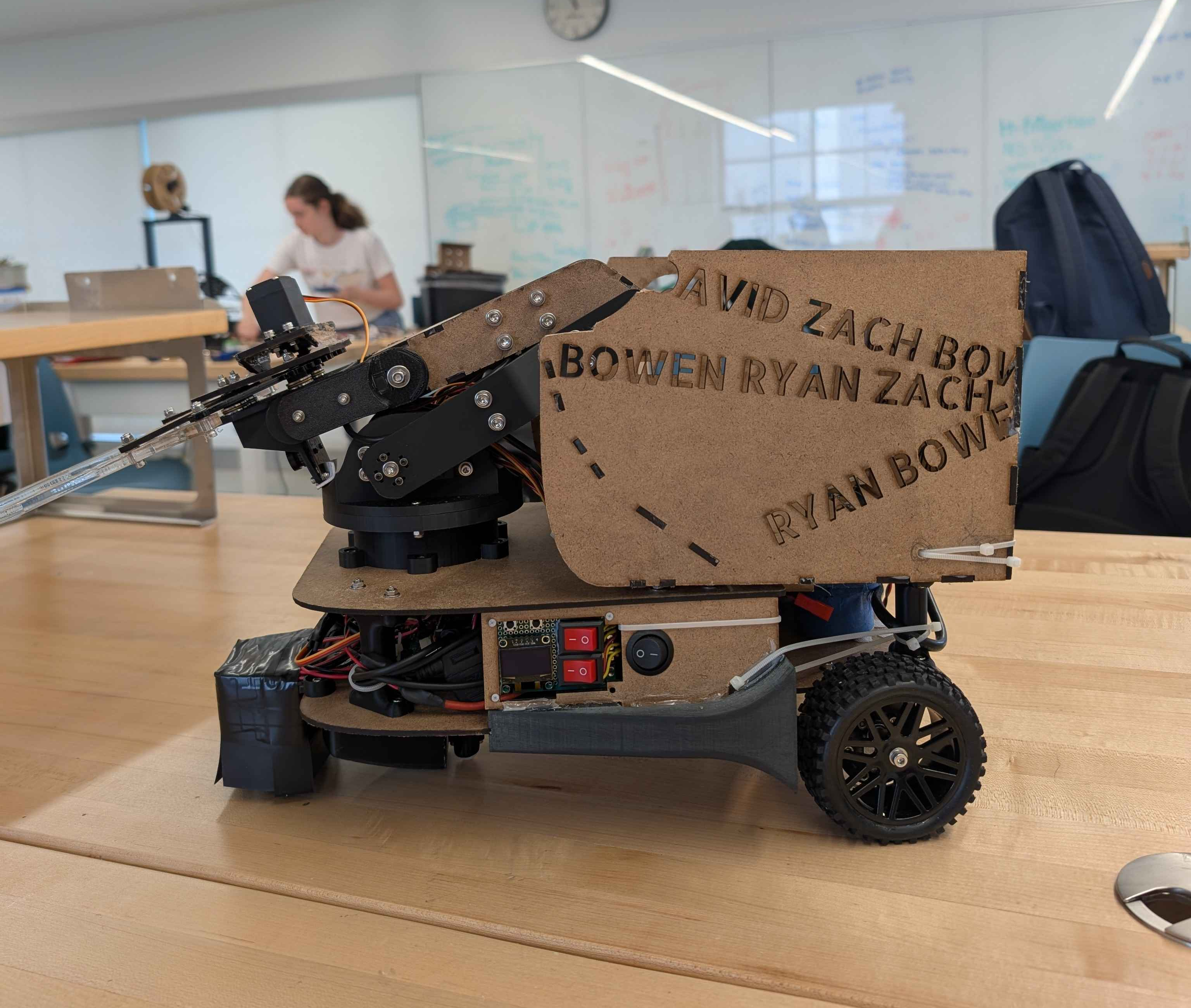

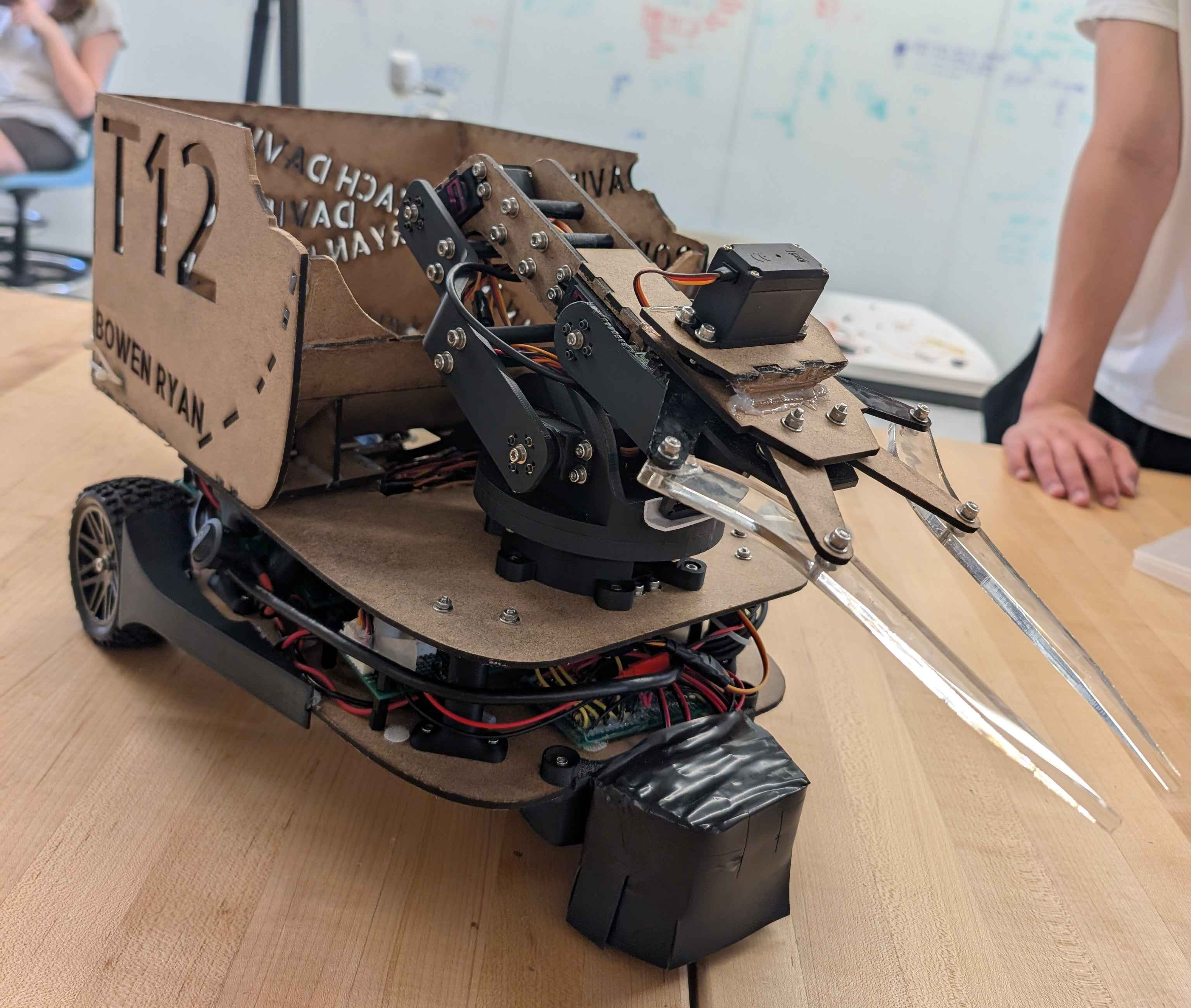

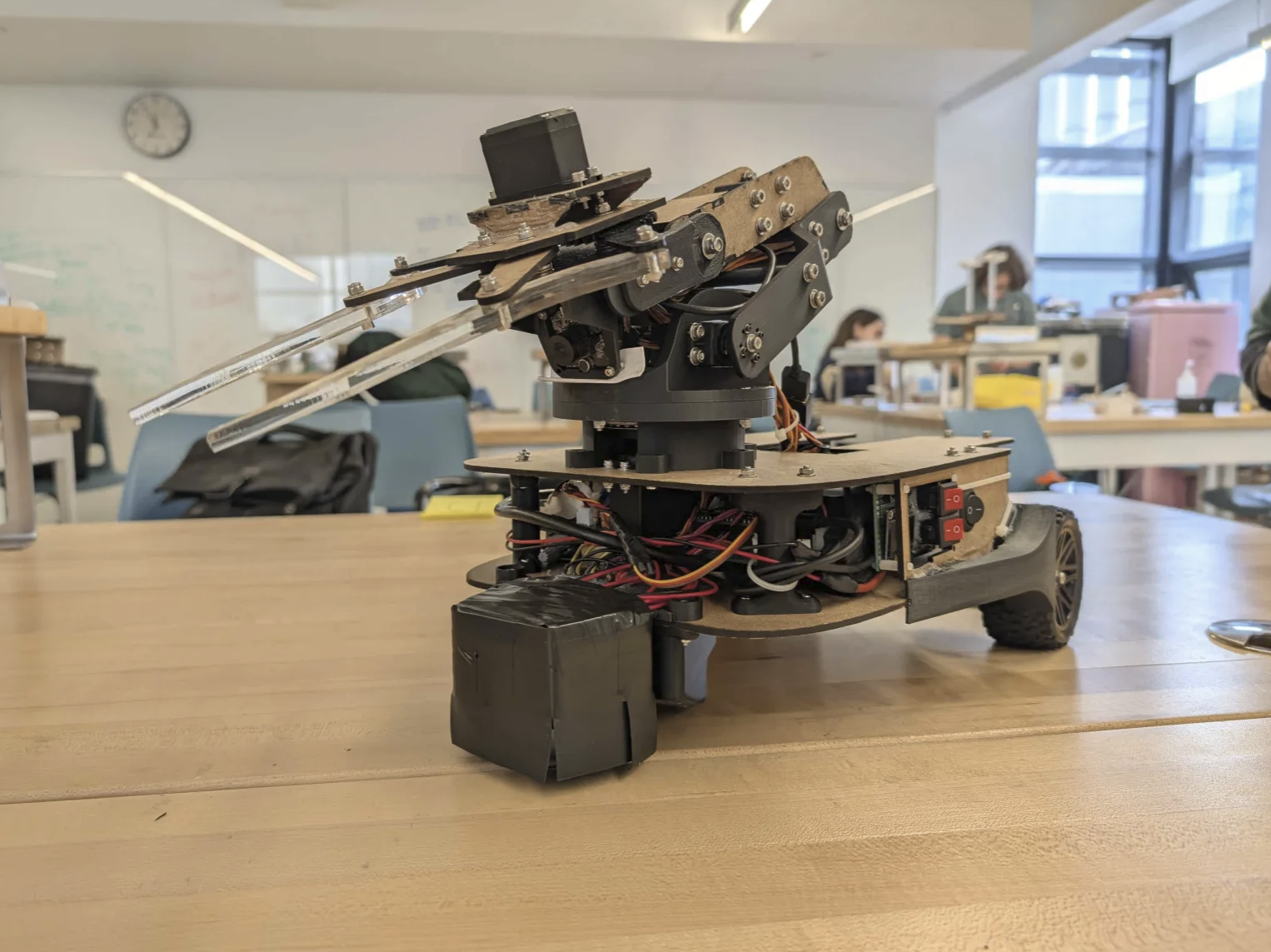

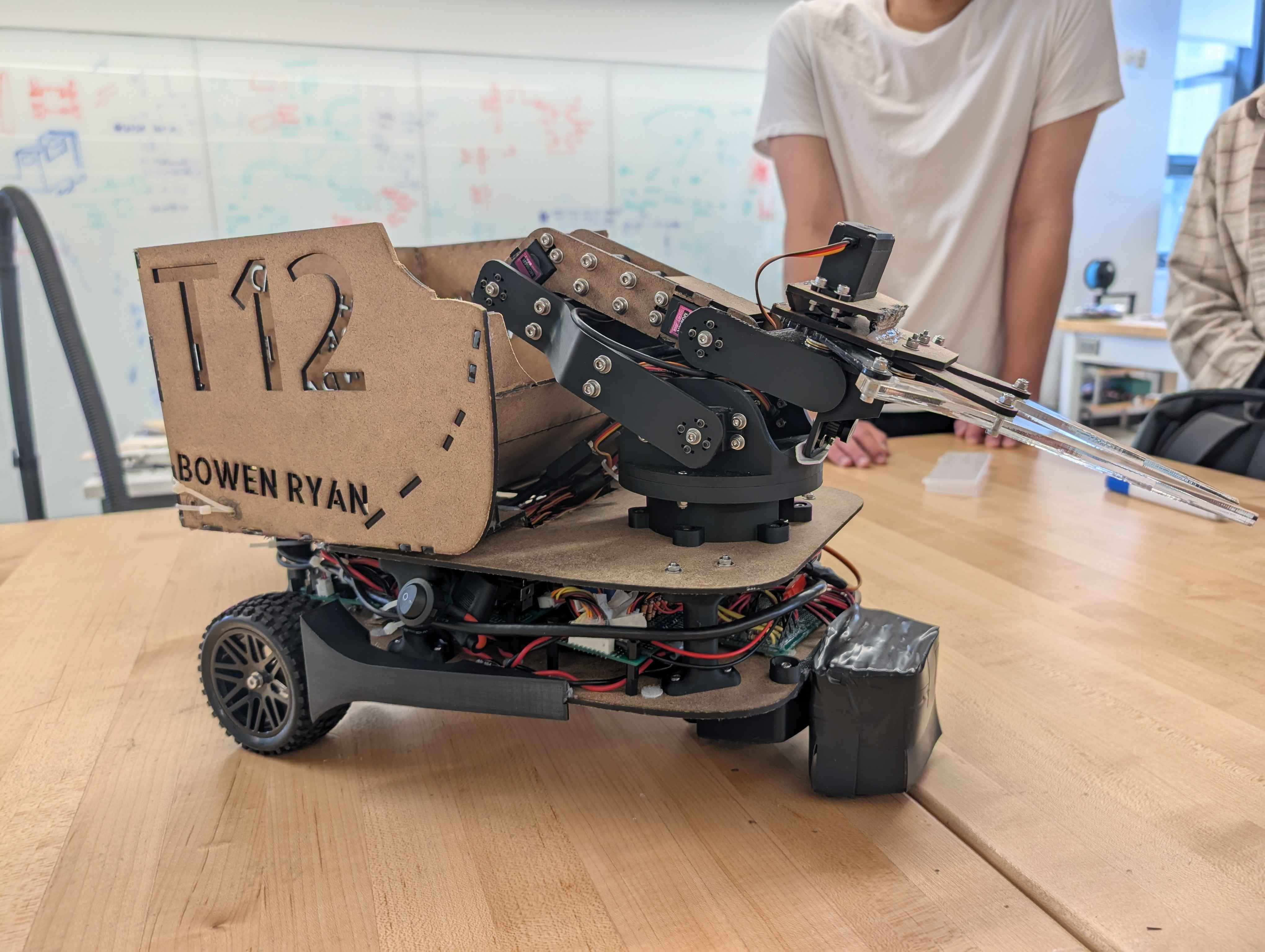

A fully autonomous “search and rescue” robot integrating dual sensing (vision + IR reflectance), YOLO object detection, articulated arm with inverse kinematics, and a split system architecture (Raspberry Pi high‑level + ESP32 real‑time control).

Highlights#

• Project Management + Advanced Problem Solving
• Rapid Prototyping, Manufacturing + CAD
• Tolerance stack-up analysis & precision fit validation
• Design for Manufacturing (DFM) & Design for Assembly (DFA)
• Center-of-mass balancing & stability optimization
• Mechanical-electrical co-design for PCB integration
• Soldering, Electronics + PCB Design
• Troubleshooting (noise issues, signal integrity, software + hardware)

Full Mission#

Line Following#

Object Tracking#

Details#

Check out the project repository on Github!

Quick Start#

1. Flash ESP32 firmware (PlatformIO project in esp32/).
2. Connect ESP32 over USB; verify serial at 921600 baud.
3. On the Pi / dev machine:

python3 -m venv .venv
source .venv/bin/activate  # Windows: .venv\Scripts\activate
pip install -r pi/requirements.txt
python pi/robot_controller.py --serial-port /dev/ttyUSB0 --enable-gui

4. Confirm cameras enumerate (GUI or log output).
5. Begin mission (line following, detection, pickup sequence).

Repository Layout#

System Architecture#

	Raspberry Pi (Python)                               ESP32 (Firmware)
┌──────────────────────────────┐                  ┌──────────────────────────┐
│ camera_manager.py (threads)  │  serial cmds     │ motor.cpp                │
│ line_following_manager.py    │────────────────► │ linefollower.cpp (PID)   │
│ object_detection_manager.py  │                  │ arm.cpp (IK, servos)     │
│ motor_controller.py          │  serial cmds     │ pi.cpp (command parser)  │
│ arm_controller.py            │◄─────────────────│ input_display.cpp (UI)   │
│ robot_controller.py (or GUI) │  status / ACK    │ custom_servo.cpp         │
└──────────────────────────────┘                  └──────────────────────────┘

Closed-loop layering:

• High-level (Pi): vision line extraction, object detection, mission state, arm trajectory requests.
• Low-level (ESP32): deterministic PWM, reflectance PID, servo motion profiles, safety handling.

Firmware (ESP32)#

Location: esp32/

Build & flash:

pio run -t upload

Key classes:

• MotorController – speed limiting, direction control, min/max enforcement.
• LineFollower – FreeRTOS task computing line position from 4 analog sensors; PID (Kp,Ki,Kd,Ko) -> differential motor commands.
• ServoController – Multi-servo abstraction: target angle, speed limiting, mirrored shoulder mapping, optional IK velocity mode, wrist lock.
• PiComm – Parses ASCII commands starting with PI:; returns ESP:... responses.
• InputDisplay – Debounced inputs + user feedback states (INIT, READY, RUNNING, ERROR).

Timing model:

• Main loop (~100 Hz) services serial + updates servos.
• Line following runs in its own task (consistent dt for PID deltaTime calculation).
• Servo motion increments based on elapsed millis (no blocking delays).

High-Level Software (Raspberry Pi / PC)#

Location: pi/

Install:

pip install -r pi/requirements.txt

Run main controller:

python pi/robot_controller.py --serial-port /dev/ttyUSB0 --enable-gui

Key modules:

• camera_manager.py – Thread-per-camera continuous capture, non-blocking latest frame API, optional downsample.
• line_following_manager.py – Vision line detector: multi-row scan, brightness threshold, brown rejection, adaptive search center.
• object_detection_manager.py – YOLO (see object_detection_config_*.json), optional crop to ROI for speed.
• motor_controller.py – Maps vision-derived line error to controller speed, then to raw motor speeds via serial (PI:MC), supports reflectance mode switching.
• arm_controller.py – High-level turret & IK commands packaging to serial (PI:GP, PI:SP, etc.).
• robot_gui.py / object_detection_ui.py / line_following_ui.py – Visualization & tuning.

Command Protocol (Pi <-> ESP32)#

ASCII lines terminated by \n. Requests start with PI:. Selected handlers (see pi.h):

Responses typically: ESP:OK:msg, ESP:ERROR:reason, status updates (e.g. ESP:EMERGENCY_STOP, ESP:FINISH).

Example exchange:

> PI:PID,30,0,0.5,2
< ESP:OK:PID Updated
> PI:LF,1
< ESP:OK:Line Following Started

Core Algorithms (Summary)#

Reflectance Line Following (Firmware)#

4 analog sensors -> position estimate -> PID (Kp,Ki,Kd,Ko) -> differential motor PWM (clamped).

Vision Line Detection (Pi)#

Row sampling + brightness threshold + brown rejection + weighted lateral error -> optional camera-mode PID.

Curve Detection#

Angle difference lower vs upper line segments > threshold => phase transition cue.

Object Detection#

YOLO model (config JSON) with optional ROI cropping triggers pickup routine.

Arm IK#

Planar 2‑link solve with mechanical offsets; mirrored shoulder; wrist lock for end-effector orientation.

Mission Flow (Reference)#

1. System init & servo home.
2. Enable chosen line following mode.
3. Track line; detect curve events for state changes.
4. Object zone: detect & localize target.
5. Execute pickup (IK + claw) and deposit.
6. Resume or terminate mission.

Safety#

• Emergency stop halts motors, stops tasks, reports ESP:EMERGENCY_STOP.
• Reset button (long hold) returns to READY state.

Competition Rules#

Official competition rules for the robot can be found here. Apologies in advance if this link is no longer functional in the future! Send me a message and I may be able to email you a PDF or something…

Development#

Contributors#

Made with love and Big Way by Ryan Cheng, David Oh, Zachary Xie, Bowen Yuan
